IT関連技術レポートの情報公開（#12 FTP Print）

 コニカミノルタ複合機にC360i 及び　その姉妹機に置けるFTP印刷設定方法。

 コニカミノルタ複合機にC360i 及び　その姉妹機に置けるFTP印刷設定方法。

　　You need to set up MFD as FTP printing enables.

                     Setting in the admin setting

                    Setting in the service mode setting.

 Service manual description

NOTE

• The following conditions are necessary for this function.

When selecting [Security Setting] → [Security Details] → [Print Data Capture]

in Administrator Settings, [Allow] must be set.

The hard disk must be mounted to the machine.

When selecting [Administrator Settings] → [Network Settings] → [FTP Settings],

[FTP Server Settings: ON] must be set.

< Reference >

• This function is not available when the optional image controller IC-409 is

mounted.

1. Select [Service Mode] → [System 2], and touch [Data Capture]. Select [ON].

(While the Data Capture setting is [ON], the print job data from the PC will be stored

in the hard disk.)

NOTE

• The original offset value can be disabled to address image failure and other

problems caused by individual CCD performance difference.

2. Check the IP address of the machine.
3. Connect the PC (Windows) and the machine with ethernet cable.

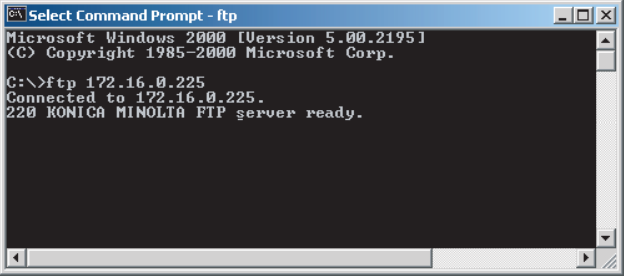

4. Start the DOS command prompt of the PC, and specify the IP address of the

machine to start FTP.

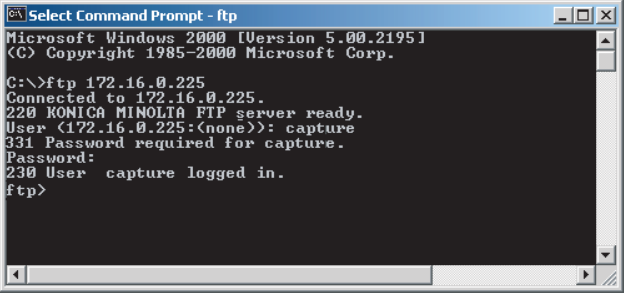

5. Input the user name and the password.

User name: capture

Password: sysadm

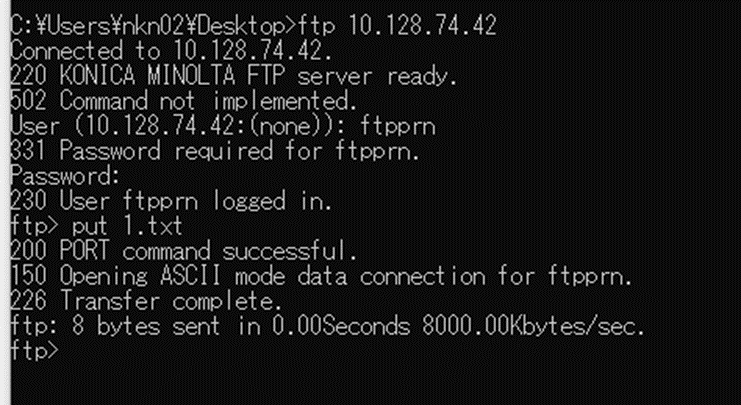

• FTP print with special ID/PW

To get the initial code

With ID/PW:

To change the dipsw      72 bit 0  0-> 1

                                       72 bit 3  0-> 1

User; ftpprn

Password; FTP6626

The test procedure is here.

C360i is 10.128.74.42

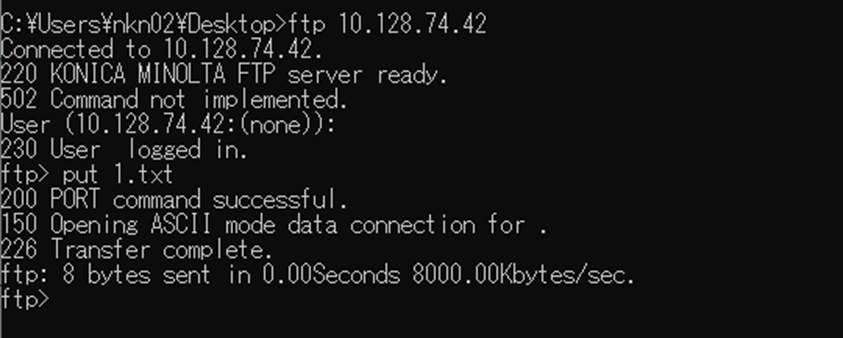

• FTP print with No password

       Without ID/PW:

I change the dipsw      72 bit 0  0-> 1

                                   72 bit 3  0-> 1

                                   228 bit 3  0-> 1

User; nul

Password; not asked

The test procedure is here.

C360i is 10.128.74.42
